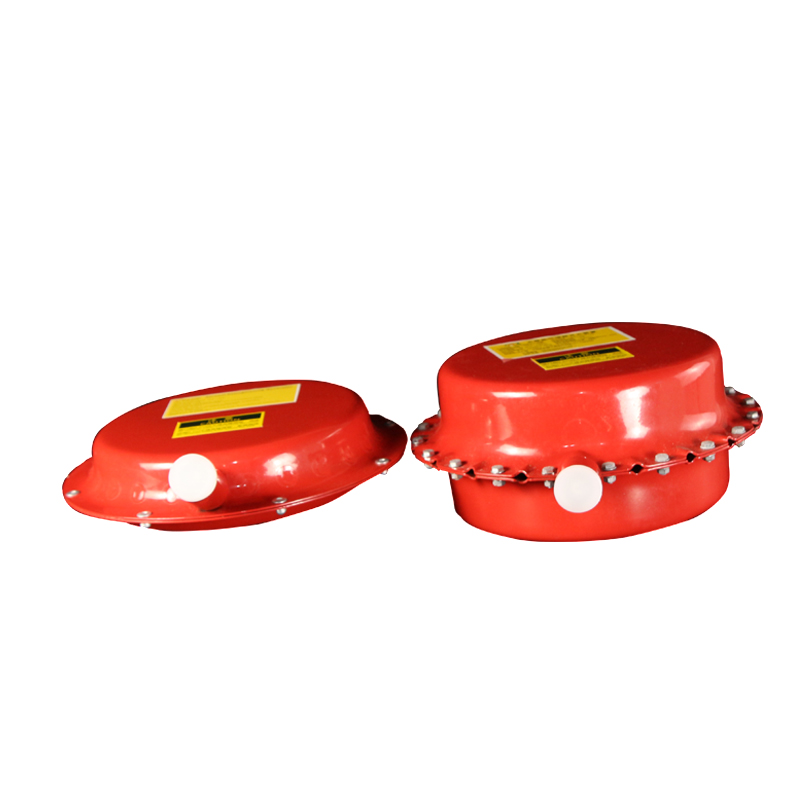

Wall Mounted Aerosol Fire Extinguisher Wall Mounted Aerosol Fire
Suppression Device
The properties
1. Extremely effective extinguishing agent, developed from military
technology
2. Widely applications, hazard of Class A, B, C, E fires can be
controlled and extinguished,that means a lot of fields can use it,
like vehicles, energy, power, etc.
3. Small space occupied because of its compact design
4. Non toxic, ecologically safe and environmentally friendly (
Global Warming Potential=0, Ozone Depletion Potential=0,)
5. Uniquely easy to use and install
6. No significant pressure and pipes to build
7. Non pressurized storage
8. Approved as idea alternative of Halon for very little spaces
occupied
9. Low maintenance cost
10. Very cost effective
Basic information
| Product model | FireLess 50 | FireLess 100 |
| Device dimension | 240(diameter)X69(height) | 240(diameter)X110(height) |
| Device weight | 3.4kg | 5.3kg |
| Agent quantity | 1.4kg | 2.8kg |
| Protected volume | 50m3 | 100m3 |
| Activation mode | Electric start | Electric start |
| Operation condition | -50℃~+95℃ | -50℃~+95℃ |
| Discharge time | ≤9s | ≤15s |
| Activation current | 700mA, DC | 700mA, DC |
| Installation method | Fixed by bolting | Fixed by bolting |
Application
Fire-suppression systems for battery energy storage systems
How to take advantages of power and electricity is one of the
greatest things human done. As the technology for energy storage
advances, the associated fire hazards go up as well.
It is common knowledge that lead-acid batteries,one of lithium-ion
batteries, when charge batteries in a fault or overcharge condition
can generate hydrogen, which is highly flammable and can
potentially result in an explosion.
The different fire protection system comparison
The water and sprinkler systems
Water has been used for thousands of years to extinguish fires
because of its effectiveness, availability and low cost. But a lot
of fields are not compatible with water, like lithium-ion
batteries, It is thermally conductive and can cause
short-circuiting. In the event of a fire, the sprinkler system is
activated, the surrounding batteries that are not involved in the
fire will in the the risk of damages and substantial cleanup work
will be required as well.
The FireLess aerosol fire suppression system: It works by lowering
the temperature of the fire, suppressing the combustion of free
radicals, and dilute the concentration of oxygen to a extent in the
room. Additional, they are not conductive and leave no residue to
clean up. FireLess aerosol fire suppression system will discharge
the aerosol which fills the whole protected container or room with
total flooding method.
So FireLess aerosol fire suppression system can put the fire out
very effectively in the early satge without damaging to the
adjacent equipment and there is almost no need of cleanup.
